Equipment Inventory

About 172 ESPHome entities across relay-backed equipment, sensor streams, 49 grow light fixtures, and 70 active mister nozzles.

This is a public equipment map, not a wiring guide. It intentionally describes models, control boundaries, and relay names without publishing instructions detailed enough to replicate mains wiring. Raw reference notes remain in the private/local wiki; public readers should use this page as the canonical sanitized version.

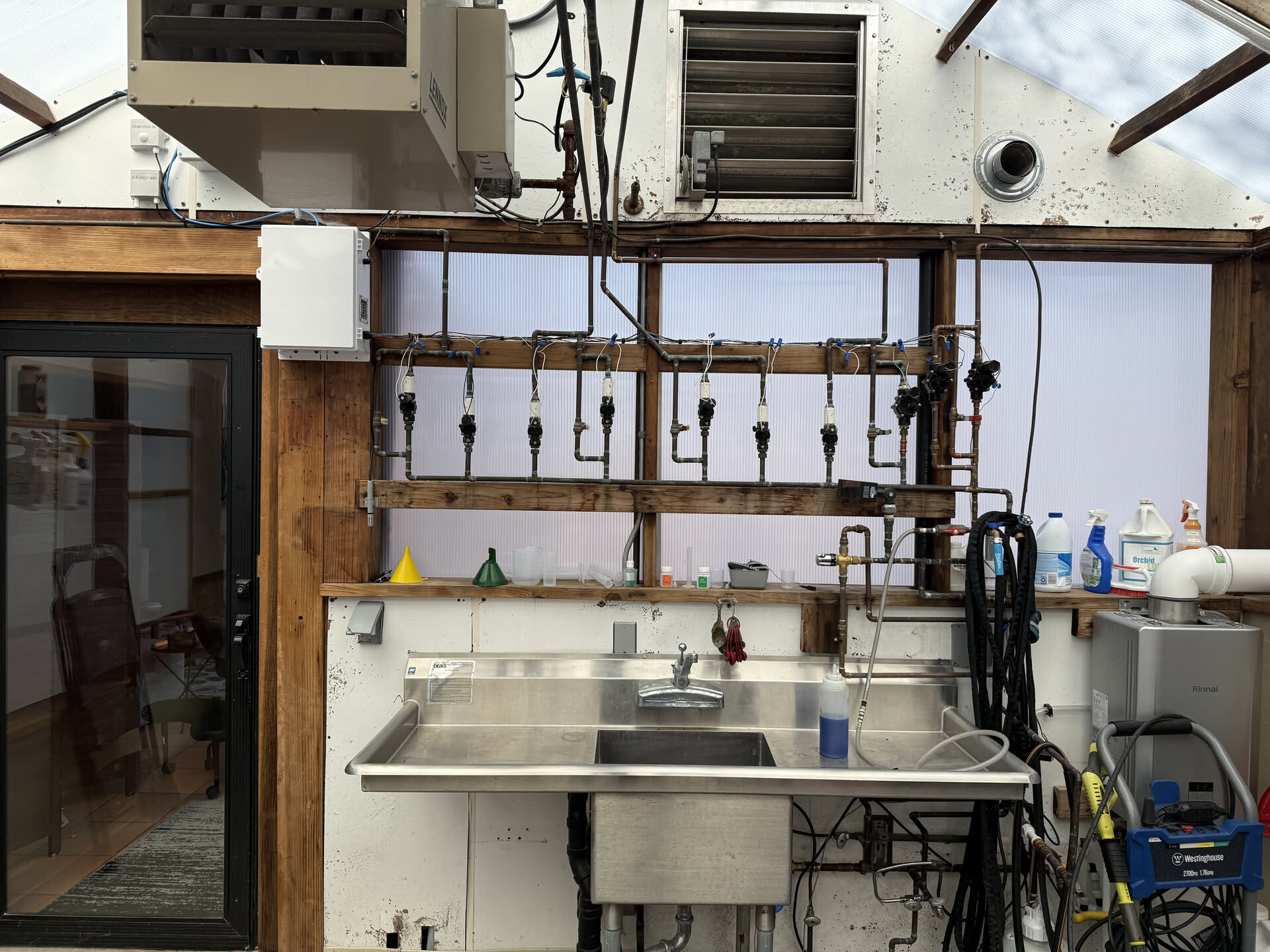

North wall service core with Lennox heater, motorized intake vent, copper irrigation manifold, stainless sink, Rinnai water heater, and utility pump
North wall service core: heat, intake air, irrigation manifold, water, utility sink, and house-side access all meet here.

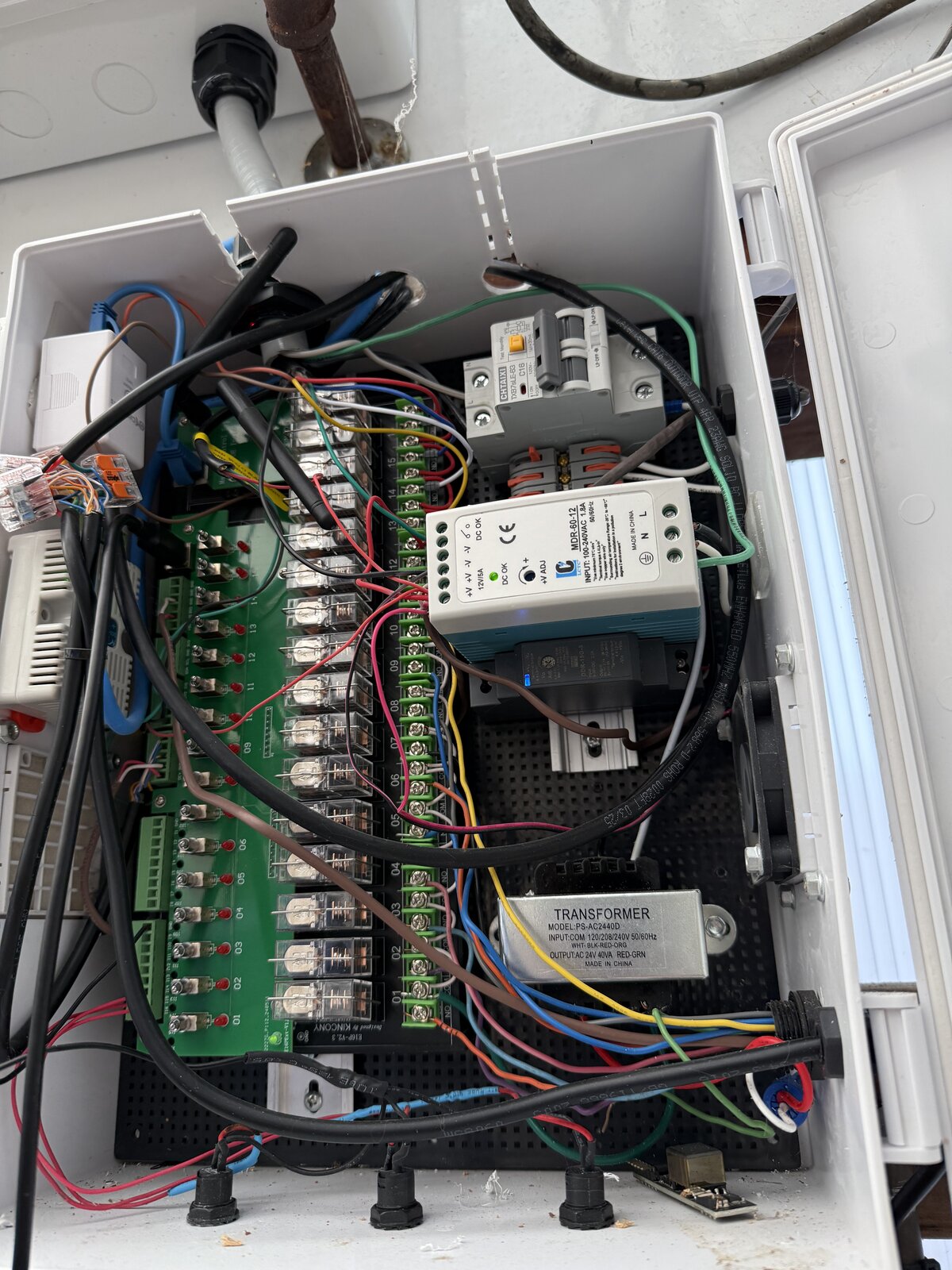

Kincony KC868-E16P relay board with 16-channel relays, DIN-rail breaker, transformer, and color-coded wiring
Relay and low-voltage control hardware. The public docs describe the boundary; they are not wiring instructions.

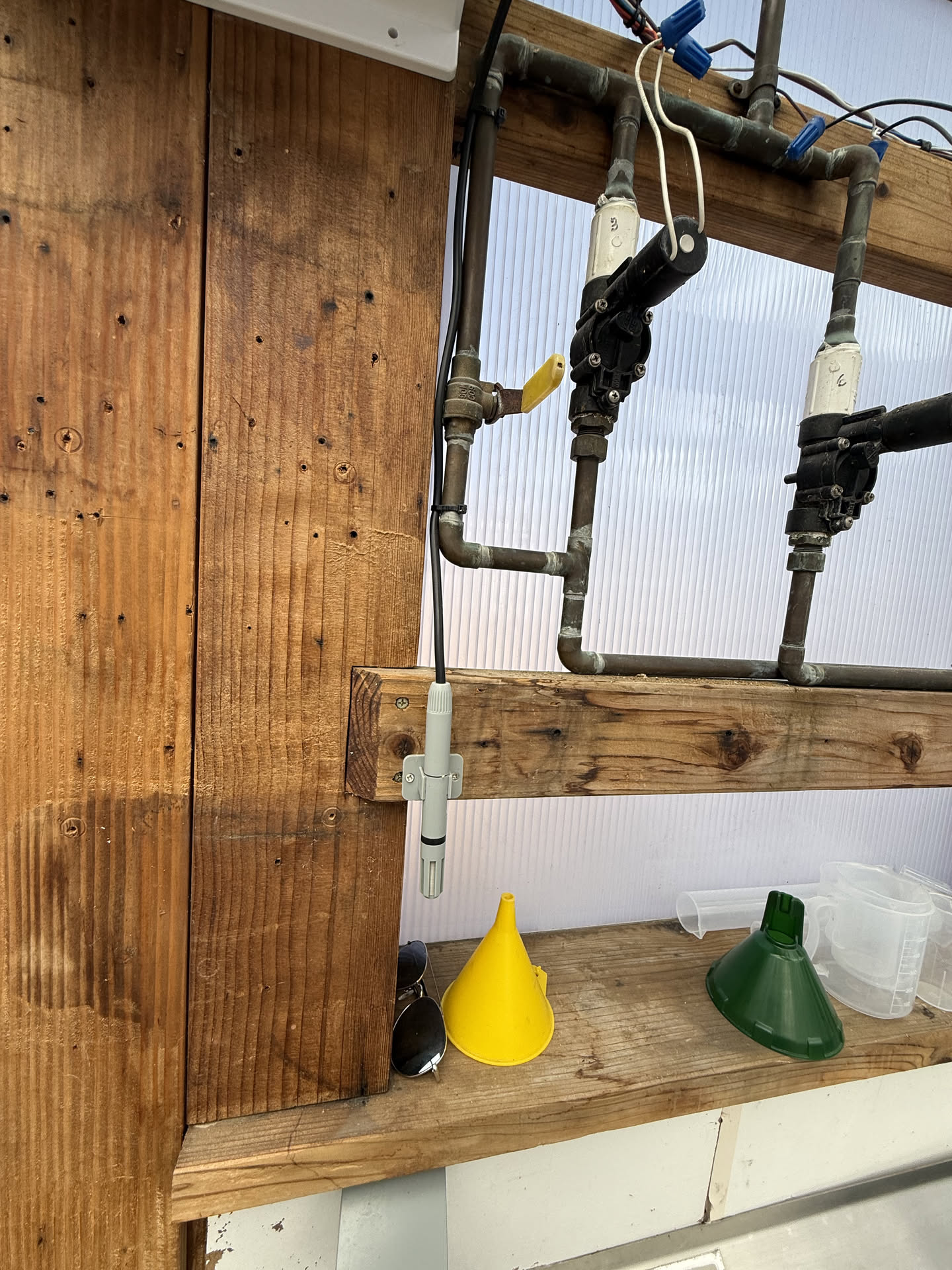

Tzone RS485 climate sensor probe in louvered housing
One of the RS485 climate probes feeding the public telemetry model.

Climate Control

EquipmentModelPowerCost/hrControl
Electric heaterGeneric (discontinued)1,500WUSD 0.167ESP32 → SSR
Gas furnaceLennox LF24-75A-575,000 BTUUSD 0.623ESP32 → SSR
Exhaust fan ×2KEN BROWN 18” Shutter52W eachUSD 0.006ESP32 → SSR
Intake ventUnknown actuator~10WUSD 0.001ESP32 → SSR
Fog machineAquaFog XE 2000 HumidiFan1,644WUSD 0.182ESP32 → SSR

Misting

ZoneActive HeadsActive NozzlesMount
South630Wall-mounted, 2 rows
West315Overhead
Center525Overhead
Nozzles: Micro Drip 360° emitters, 1/2”, 1–5 Bar, 0–300 L/H adjustable.

Clean and fertilized wetting paths are separate relay outputs where installed. South and west have clean and fert mister paths. Center has a clean mister path plus clean and fert center drip/wetting paths. Firmware applies the same direct-wet gate to misters, drip lines, fert paths, and flush paths before any automated plant wetting is allowed.

Lighting

CircuitFixturesModelWattsCRI
Grow (2FT)34Barrina T8 24W816W80
Main (4FT)15Barrina T8 42W630W98
See Greenhouse Lighting for lighting behavior, sensor limits, DLI, and grow-light runtime.

Sensors

SensorModelCountAccuracyProtocol
Climate probesTzone RS485 (SHT3X)6±0.3°C, ±2% RHModbus RTU
Soil probesDFRobot SEN0600/SEN06013Moisture, temp, ECModbus RTU
CO₂Kincony analog10–10K ppmADC (GPIO36)
Light (indoor)Kincony LDR1Poor (saturates 28K lux)ADC (GPIO35)
Water flowDAE AS200U-75P1Pulse counterGPIO33
Hydro qualityYINMIK1pH, EC, TDS, ORP, tempWiFi via HA
Weather stationTempest120 outdoor metricsDirect Tempest feed + forecast sync
EnergyShelly EM5013 circuitsHTTP API
CamerasModel withheld2Internal crop/operations viewsFrigate

Controller

ESP32-based controller enclosure with relay modules and transformer
PropertyValue
BoardKincony KC868-E16P
FirmwareESPHome platform; live build tracked in Operations
I/O Expanders2× PCF8574 (output), 1× PCF8574 (input, unused)
RelaysCG SSR-25DA (DC→AC, 25A)
EntitiesAbout 172 subscribed ESPHome entities
Network addressWithheld from public site

Water

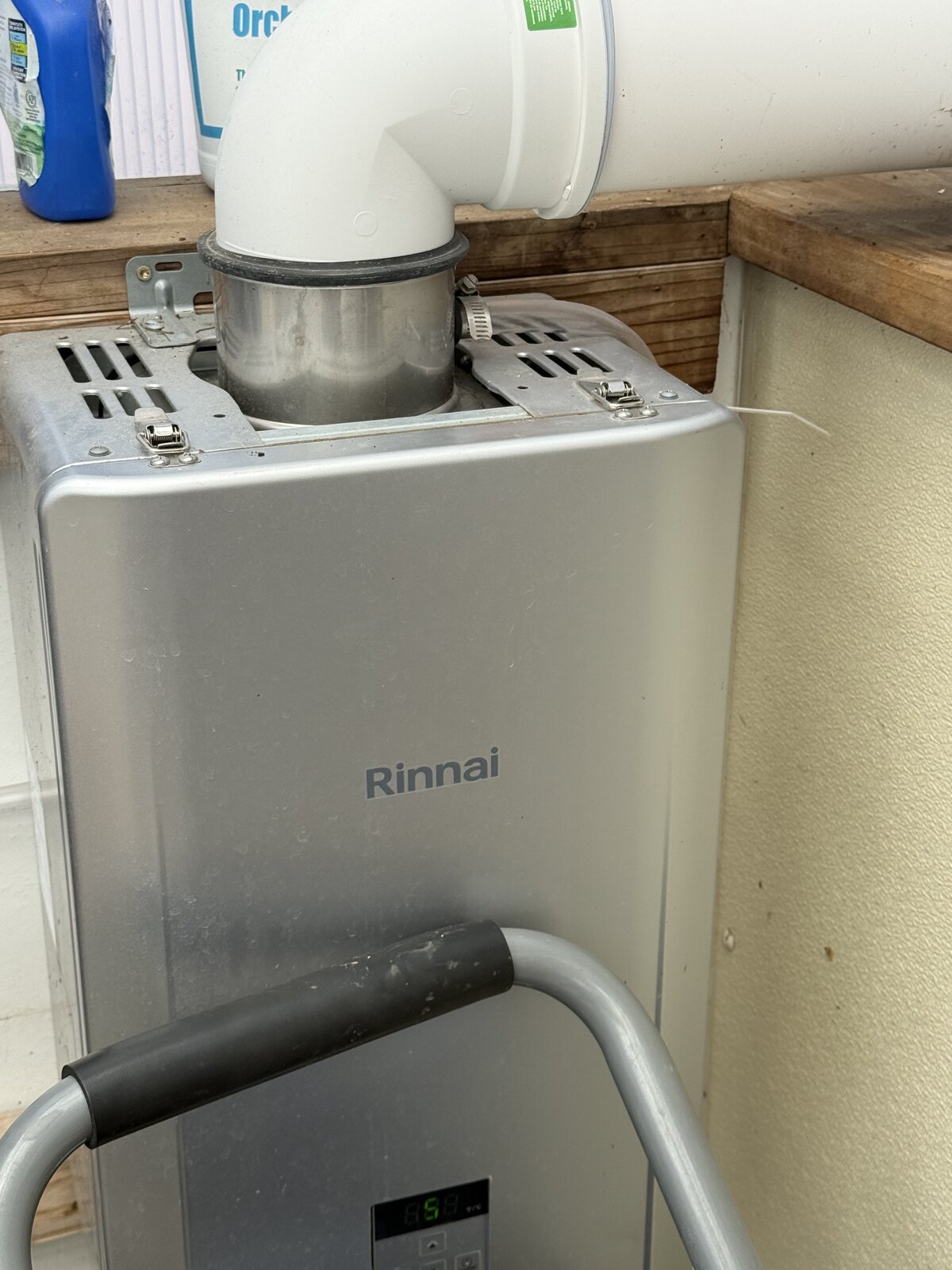

Rinnai tankless water heater mounted on the north wall with digital temperature display
EquipmentModelSpecs
Water heaterRinnai RE140iN140K BTU tankless NG, 5.3 GPM
Water meterDAE AS200U-75P3/4” NPT, pulse output, gallons

Important Control Boundary

Some catalog entries are compatibility names or physical paths with greenhouse-specific plumbing semantics. The relay map below preserves those names because telemetry and firmware refer to them. The source-of-truth control boundary is: ESP32 firmware owns relay state, the dispatcher owns validated setpoint delivery, and direct wetting is blocked outside the global activity/per-zone wet windows unless the direct-wet gate is explicitly disabled.

Equipment Catalog

drip_centerdrip · Center Drip

Model -; zone center; watts -; cost/hr -.

drip_walldrip · Wall Drip

Model -; zone -; watts -; cost/hr -.

fan1fan · Exhaust Fan 1

Model KEN BROWN 18" Shutter; zone south; watts 52W; cost/hr USD 0.006.

fan2fan · Exhaust Fan 2

Model KEN BROWN 18" Shutter; zone south; watts 52W; cost/hr USD 0.006.

fogfog · Fog Machine

Model AquaFog XE 2000 HumidiFan; zone center; watts 1644W; cost/hr USD 0.182.

heat1heater · Electric Heater

Model Generic; zone -; watts 1500W; cost/hr USD 0.167.

heat2heater · Gas Furnace

Model Lennox LF24-75A-5; zone -; watts -; cost/hr USD 0.623.

gl1light · Main Lighting Circuit (4FT)

Model Barrina T8 42W; zone -; watts 630W; cost/hr -.

gl2light · Grow Lighting (secondary)

Model -; zone -; watts -; cost/hr -.

grow_lightlight · Grow Light Circuit (2FT)

Model Barrina T8 24W; zone -; watts 816W; cost/hr -.

mister_centermister · Center Misters

Model Micro Drip 360; zone center; watts -; cost/hr -.

mister_southmister · South Misters

Model Micro Drip 360; zone south; watts -; cost/hr -.

mister_westmister · West Misters

Model Micro Drip 360; zone west; watts -; cost/hr -.

drip_center_fertvalve · Center Drip (fert path)

Model -; zone center; watts -; cost/hr -.

drip_wall_fertvalve · Wall Drip (fert path)

Model -; zone -; watts -; cost/hr -.

fert_master_valvevalve · Fertigation Master Valve

Model -; zone -; watts -; cost/hr -.

mister_south_fertvalve · South Misters (fert path)

Model -; zone south; watts -; cost/hr -.

mister_west_fertvalve · West Misters (fert path)

Model -; zone west; watts -; cost/hr -.

ventvent · Intake Vent

Model Mechanical actuator; zone north; watts 10W; cost/hr USD 0.001.

Relay Map

PCF8574 I/O expander pin assignments. All relays are CG SSR-25DA (DC→AC, 25A).

pcf_out_1 pin 0mister_west · West Misters · active

Zone west; West misters (clean).

pcf_out_1 pin 1mister_west_fert · West Misters (fert path) · active

Zone west; West misters (fert).

pcf_out_1 pin 2mister_south_fert · South Misters (fert path) · active

Zone south; South misters (fert).

pcf_out_1 pin 3mister_south · South Misters · active

Zone south; South misters (clean).

pcf_out_1 pin 4drip_wall · Wall Drip · active

Zone -; Wall drip (clean).

pcf_out_1 pin 5mister_center · Center Misters · active

Zone center; Center misters (clean).

pcf_out_1 pin 6drip_center_fert · Center Drip (fert path) · active

Zone center; Center drip (fert).

pcf_out_1 pin 7drip_center · Center Drip · active

Zone center; Center drip (clean).

pcf_out_2 pin 0drip_wall_fert · Wall Drip (fert path) · active

Zone -; Wall drip (fert).

pcf_out_2 pin 1fert_master_valve · Fertigation Master Valve · active

Zone -; Fertigation master valve.

pcf_out_2 pin 2heat2 · Gas Furnace · active

Zone -; Gas furnace (Heat2).

pcf_out_2 pin 3fan1 · Exhaust Fan 1 · active

Zone south; Exhaust fan 1.

pcf_out_2 pin 4fan2 · Exhaust Fan 2 · active

Zone south; Exhaust fan 2.

pcf_out_2 pin 5vent · Intake Vent · active

Zone north; Intake vent.

pcf_out_2 pin 6fog · Fog Machine · active

Zone center; Fog machine.

pcf_out_2 pin 7heat1 · Electric Heater · active

Zone -; Electric heater (Heat1).

Live Equipment Runtime

The panels below show the active relay-backed equipment: runtime, cycles, and current actuation state.

Input Expander (pcf_in, 0x24)

Nothing connected. Part of the Kincony E16P board, unused.
